Plastic CNC Machining: The Ultimate Guide

Plastic CNC machining is a versatile manufacturing process used to create precision plastic parts with high accuracy and repeatability. This guide will explore the various types of plastics suitable for CNC machining, their properties, and how to select the right plastic for your project. We’ll also cover machining techniques, tooling, and practical applications across different industries, including a focus on hdpe cnc, cnc abs plastic, cnc plexiglass, delrin cnc, and custom cnc plastic solutions.

Understanding the material properties of plastics is crucial for selecting the right type for CNC machining. The properties of plastics can be categorized into physical, mechanical, and thermal properties..

Density: Plastics have a wide range of densities, which can affect the strength and weight of the final part. HDPE CNC (High-Density Polyethylene) and PEEK CNC machining involve materials with different densities that influence their use in various applications. Plastic machining services often select materials based on these properties to optimize for weight and strength.

Thermal Expansion: Plastics like acrylic (PMMA), also known as cnc plexiglass, and cnc polycarbonate have higher thermal expansion coefficients than metals, which means they expand more with temperature changes. This property must be considered to maintain tight tolerances in plastic cnc machining.

Water Absorption: Some plastics, such as nylon, are hygroscopic and can absorb moisture from the air, which can affect their dimensions and mechanical properties. Ensuring minimal water absorption is crucial in applications where precision is key.

Tensile Strength: This is a measure of how much pulling force a plastic can withstand before breaking. CNC machined plastic parts that require high tensile strength might use materials like polycarbonate or PEEK.

Flexural Strength: Flexural strength measures a material’s ability to resist deformation under load. It is crucial for parts that need to maintain shape under stress, such as automotive and aerospace components.

Impact Resistance: Some plastics, such as HDPE and polycarbonate, are known for their excellent impact resistance, making them ideal for applications where durability is essential..

Melting Point: The melting point of a plastic determines the maximum temperature it can withstand before it starts to deform. PEEK and PTFE have high melting points, making them suitable for high-temperature applications.

Glass Transition Temperature: This is the temperature at which a plastic transitions from a hard and brittle state to a more flexible and rubbery state. Understanding this property helps in choosing the right plastic for temperature-sensitive applications.

Heat Deflection Temperature: This property indicates the temperature at which a plastic deforms under a specific load. It is crucial for applications that operate in high-temperature environments.

There are several types of plastics commonly used in CNC machining, each with unique properties and applications.

ABS (Acrylonitrile Butadiene Styrene): Known for its good impact resistance and toughness, CNC ABS plastic is widely used in automotive and consumer products. It is also popular in custom CNC plastic machining due to its ease of machining and affordability.

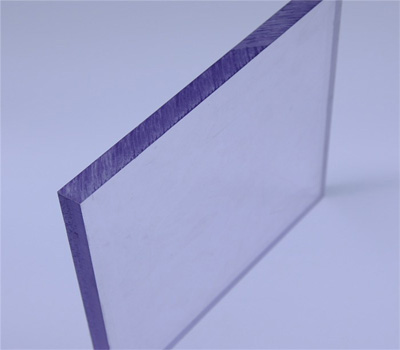

PC (Polycarbonate): CNC polycarbonate is highly transparent and impact-resistant, making it ideal for applications that require both strength and clarity, such as eyewear lenses and protective covers. CNC polycarbonate machining ensures precise and durable parts with excellent optical clarity.

PET (Polyethylene Terephthalate): PET is commonly used in food and beverage containers due to its chemical resistance and durability. CNC machining of PET is used for parts requiring high strength and resistance to environmental factors.

POM (Polyoxymethylene): Also known as Delrin, POM is known for its low friction and high stiffness, making it ideal for precision gears and bearings. Delrin CNC machining is favored for creating parts with tight tolerances and smooth surfaces.

PP (Polypropylene): This material is known for its chemical resistance and toughness. It is often used in packaging, automotive, and medical applications where flexibility and strength are required.

PS (Polystyrene): PS is lightweight and has good insulation properties, making it suitable for applications in electronics and packaging. CNC machining of PS is often used for components that require precise shaping.

PVC (Polyvinyl Chloride): PVC is durable and resistant to chemicals and weathering, making it suitable for piping and outdoor applications. CNC plastic cutting of PVC allows for the production of complex shapes and precise dimensions.

Epoxy: Known for its excellent adhesive properties and chemical resistance, epoxy is often used in coatings and composite materials. CNC machining of epoxy requires specialized tools to handle its hardness and brittleness.

Polyurethane: This material is versatile and used in a wide range of applications, from automotive parts to seals and gaskets. CNC machining of polyurethane requires careful control to avoid overheating and material degradation.

Silicone: Silicone is known for its flexibility and resistance to high temperatures. It is often used in medical and food-grade applications where hygiene and flexibility are crucial.

PA (Polyamide): Also known as nylon, PA is strong and resistant to wear and chemicals, making it ideal for high-stress components like gears and bearings.

PEI (Polyetherimide): PEI is a high-performance plastic with excellent thermal stability and flame resistance, used in electrical components and aerospace applications.

PEEK (Polyetheretherketone): PEEK CNC machining is a high-performance process known for its exceptional mechanical properties and resistance to high temperatures and chemicals. PEEK is often used in aerospace, automotive, and medical applications where material failure is not an option.

PI (Polyimide): PI is known for its high-temperature resistance and excellent electrical properties, making it suitable for use in electronics and aerospace applications.

Carbon Fiber Reinforced Plastics (CFRP): CFRP is known for its high strength-to-weight ratio and is used in aerospace, automotive, and sporting goods applications.

The machining characteristics of plastics vary widely based on their material properties and the type of machining process used.

Cutting speed is crucial in plastic CNC machining to prevent material melting or burning. Softer plastics like HDPE can handle higher speeds, while harder materials like polycarbonate require lower speeds to maintain surface quality.

The feed rate, or the speed at which the cutting tool advances into the material, is another critical parameter. A higher feed rate may result in faster machining times but can compromise surface quality and increase the risk of tool wear. Conversely, a slower feed rate produces a smoother finish but may increase production time. Finding the right balance is key, especially when working with different types of plastics. For example, materials like Delrin (POM) can handle a relatively high feed rate due to their mechanical strength, while softer plastics may require slower rates to prevent deformation.

The depth of cut refers to how deeply the cutting tool engages with the material in a single pass. In plastic CNC machining, controlling the depth of cut is essential to prevent material stress and potential damage. A shallow depth of cut is often used for plastics to minimize the buildup of heat and reduce the risk of chipping or melting, especially in materials with lower thermal stability like acrylic or ABS.

Choosing the right tool material is crucial for ensuring precision, efficiency, and longevity during the CNC machining of plastics.

HSS (High-Speed Steel): High-speed steel tools are suitable for machining softer plastics at lower speeds. They are less expensive than carbide tools but may wear out more quickly when used on harder plastics.

Carbide: Carbide tools are more durable and wear-resistant, making them ideal for harder plastics like polycarbonate and PEEK. They can withstand higher temperatures, which is beneficial when machining plastics that tend to generate more heat.

Diamond-Coated: Diamond-coated tools offer exceptional wear resistance and are used for machining highly abrasive plastics or composites, such as those reinforced with carbon or glass fibers. They provide the longest tool life and can achieve very smooth surface finishes, making them suitable for high-precision applications.

Several machining techniques are employed in plastic CNC machining, each suited for different types of cuts and shapes.

Turning involves rotating the plastic workpiece against a stationary cutting tool. This technique is typically used for creating cylindrical parts and is well-suited for machining large plastic components with simple geometries. CNC turning is effective for making round shapes, threads, and grooves. Special considerations, such as using a negative back rake angle and generous relief angles, help minimize rubbing and improve surface finish when turning plastics.

Milling is a versatile machining process where a rotating cutting tool removes material from a stationary plastic workpiece. It is ideal for creating complex shapes and features, including flat surfaces, pockets, and intricate geometries. CNC milling machines come in various configurations, such as 3-axis mills for simpler parts and multi-axis mills for more complex geometries. When milling plastics, using sharp tools and appropriate spindle speeds is crucial to avoid overheating and achieving the desired precision..

Drilling is a common CNC machining technique used to create holes in plastic workpieces. This process requires careful selection of drill bits and parameters to avoid issues like shearing, overheating, and poor chip ejection. Sharp, properly shaped drill bits with a suitable lip angle are essential to prevent heat buildup and maintain the integrity of the plastic part. For most thermoplastics, a drill bit with a 90 to 118-degree angle and a 9 to 15-degree lip angle is recommended. Proper cooling and chip removal techniques are also vital to prevent melting and ensure a clean, accurate hole..

CNC machined plastics are used across a variety of industries due to their versatility, cost-effectiveness, and ability to be precisely shaped into complex geometries. Below are some of the key applications:

In the automotive industry, CNC machined plastic parts are extensively used for both interior and exterior components. These include dashboards, trim, bumpers, and various functional components such as fuel tanks, fuel supply units, and control valves. The use of plastics helps in reducing the weight of vehicles, improving fuel efficiency, and providing high durability against wear and tear​:

The aerospace sector benefits significantly from CNC machined plastics due to their lightweight, strength, and resistance to harsh environmental conditions. Common applications include aircraft interior components such as ventilation ducts, seating components, and insulation panels, as well as exterior parts like radomes and fairings. Plastics like PEEK and polycarbonate are particularly favored for their high-temperature resistance and impact strength

CNC machined plastics are vital in the medical field for producing components that require high precision and must adhere to strict hygiene standards. Applications include surgical instruments, diagnostic devices, sterilization trays, and prosthetic components. Plastics used in these applications, such as PEEK and PTFE, are chosen for their biocompatibility, chemical resistance, and ability to withstand sterilization processes.

In electronics and electrical applications, CNC machined plastics are used for making parts that require electrical insulation, such as housings for electronic devices, circuit boards, switches, and connectors. Plastics like ABS and polycarbonate are often selected for their insulating properties, durability, and ease of machining.

CNC machined plastics are also popular in the consumer goods sector for producing durable, lightweight, and aesthetically pleasing products. This includes everything from kitchenware, toys, and sports equipment to furniture and decorative items. The ability to produce complex shapes and high-quality finishes makes CNC plastic machining a preferred method for manufacturing various consumer products.

CNC machining of plastics provides a versatile and precise solution for producing components across various industries, from automotive and aerospace to medical and consumer goods. By understanding the unique properties of different plastics and selecting appropriate machining techniques, manufacturers can achieve high-quality, cost-effective results that meet specific requirements, such as durability, precision, and resistance to environmental conditions.
